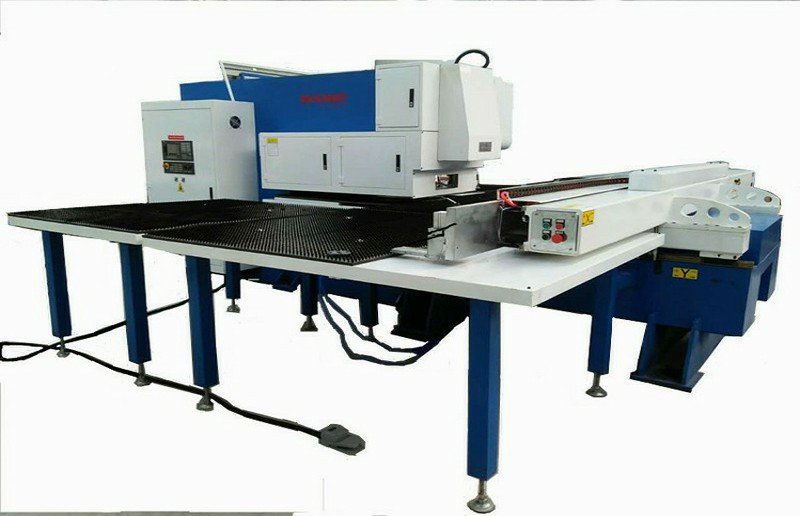

CNC turret punch Y30 series, hydraulic speed 600n/min
CNC turret punch J30 type, punching speed 300n/min
Product characteristics:
|
Serial |
Name |
unit |
parameter |
|
1 |
press |
KN（T） |
300（30） |
|
2 |
dimensions of processed sheets |
mm |
2500*1250*6.35（carbon steel ）or(4, Stainless steel ） |
|
3 |
X-axis feeding stroke |
mm |
2500（relocation function） |
|
4 |
Y-axis feeding stroke |
mm |
1250 |
|
5 |
clamps number |
set |
2 |
|
6 |
repositioning cylinder |
set |
2 |
|
7 |
workstation |
set |
16 |
|
8 |
control axes number |
個 |
4（X、Y、T、C） |
|
9 |
machining blind area |
/ |
no |
|
10 |
clamp loosening alarm device |
/ |
yes |
|
11 |
maximum piercing diameter at one time |
mm |
88.9 |
|
12 |
maximum moving speed of sheet metal |
m/min |
90 |
|
13 |
rotational speed |
rpm |
30 |
|
14 |
mold |
/ |
thick turre,long mold |
|
15 |
punching efficiency |
n/min |
300（mechanics），600（hydraulic） |
|
16 |
workbench |
/ |
brush plate , universal ball , brush and universal Ball combination |
|
17 |
punching accuracy |
mm |
±0.1 |
|
18 |
bearing weight |
Kg |
180 |
|
19 |
tank capacity |
L |
2 |
|
20 |
gas source |
Mpa |
5 |
|
21 |
power |
KW |
12（mechanics）,18(hydraulic) |
|
22 |
machine size |
mm |
4600*5000*2200（mechanics） 5600*5000*2200（hydraulic） |
|
23 |
structure |
/ |
gantry |
